Destription of Micro Differential Pressure Gauge Te5000 Mini Low Air Differential Pressure Gauge
Hot sale air micro differential pressure gauge used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. The differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative pressure, vacuum pressure or differential pressure.

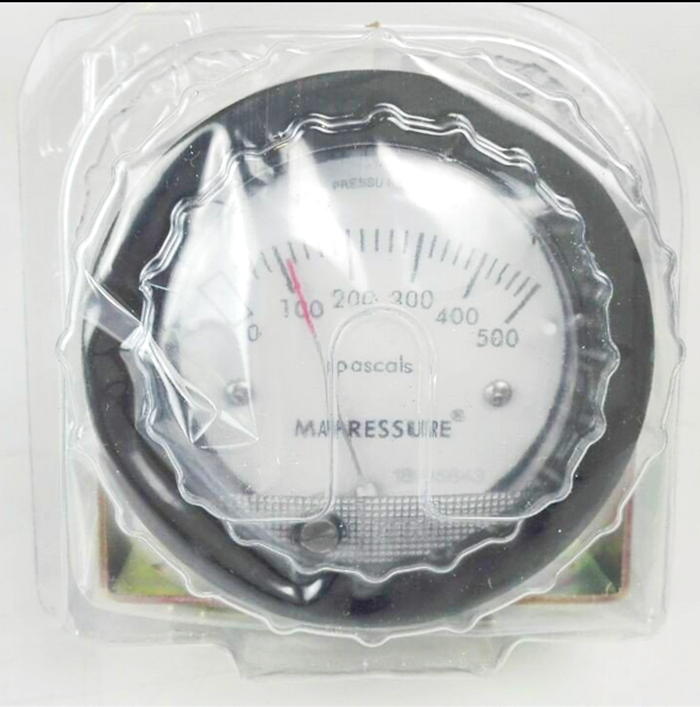

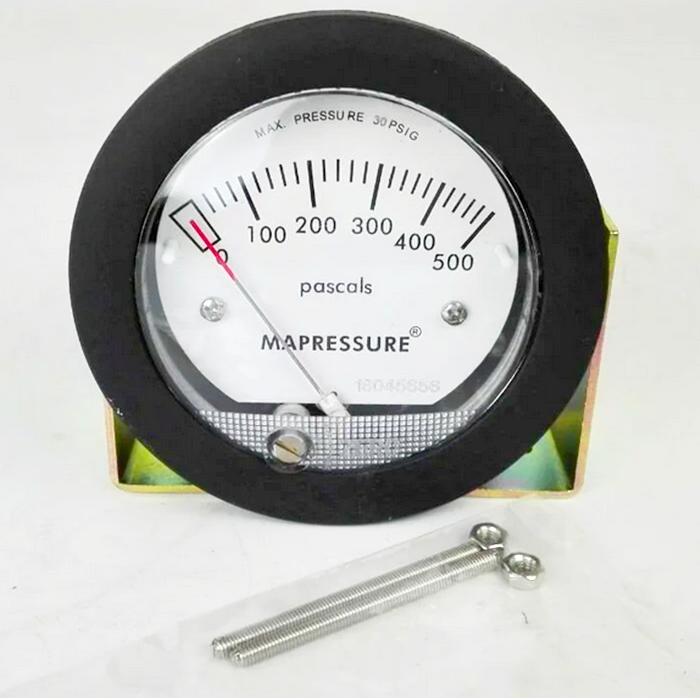

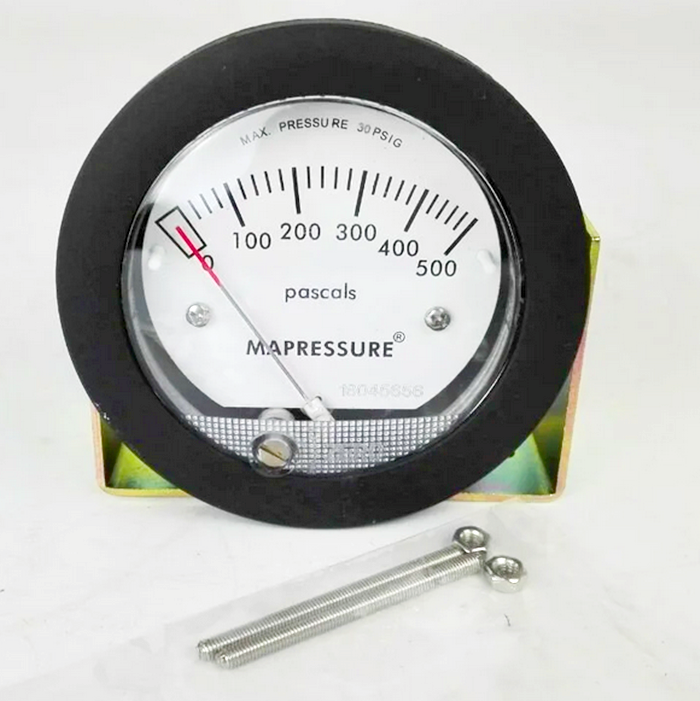

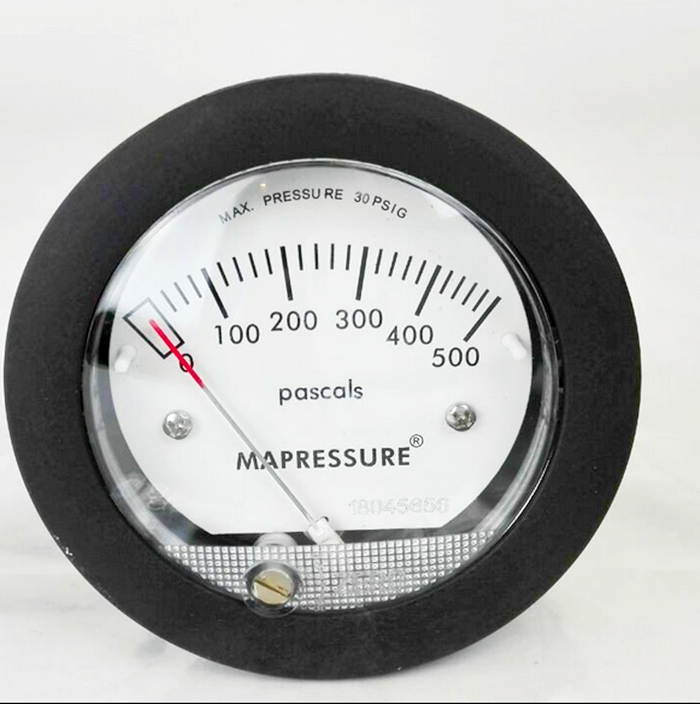

Detailed inages of Micro Differential Pressure Gauge Te5000 Mini Low Air Differential Pressure Gauge
Specification of Micro Differential Pressure Gauge Te5000 Mini Low Air Differential Pressure Gauge
| Model | Range,Pascals |
| 2-5000-125PA | 0-125 |
| 2-5000-250PA | 0-250 |
| 2-5000-500PA | 0-500 |
| Model | Range,KPa |
| 2-5000-1KPA | 0-1 |
| 2-5000-3KPA | 0-3 |
| Model | Range,inches of water |
| 2-5000-0 | 0-0.5 |
| 2-5001 | 0-1 |
| 2-5002 | 0-2 |
| 2-5003 | 0-3 |
| 2-5005 | 0-5 |
| 2-5010 | 0-10 |
| 2-5020 | 0-20 |
| 2-5040 | 0-40 |
| 2-5060 | 0-60 |
| 2-5100 | 0-100 |
| Model | Range,psi |
| 2-5205 | 0-5 |
| Model | Range,mm of water |
| 2-5000-25MM | 0-25 |
| 2-5000-50MM | 0-50 |
| 2-5000-100MM | 0-100 |
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
