NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
Description NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
Solenoid valve is an industrial equipment controlled by electromagnetic, and it is an automatic basic component used to control fluid. It belongs to actuator and is not limited to hydraulic and pneumatic. Used in industrial control systems to adjust the direction, flow, speed and other parameters of the medium. The solenoid valve can be matched with different circuits to achieve the desired control, and the control accuracy and flexibility can be guaranteed. There are many kinds of solenoid valves. Different solenoid valves play a role in different positions of the control system. The most commonly used ones are check valves, safety valves, directional control valves, speed control valves, etc.
Specification NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
Working medium: water, liquid, gas
Fluid temperature: 10 ° C - 80 ° C
Working pressure: 0-25bar or other pressure custom (see parameter table for details)
Working type: direct-acting, pilot-operated
Body material: brass, stainless steel SS304
Sealing material: NBR
Interface thread: G thread, NPT thread
Working voltage: AC220-240V, AC110v50/60hz, 22VA, DC24/12V, 13W, IP65, H grade
Optional NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
Rc thread, time timing controller, LED light junction box, sealing material (EPDM EPDM or fluororubber VITON)
Order code NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
| YY-2 | Thread code | B | T | V | Working voltage |
| Model No. | 06: 1/8’’ | T: Brass | G: G thread | N:NPR | AC220V |
| 08: 1/4’’ | B: SS | T:NPT thread | V:VITON | AC110V |
| 10: 3/8’’ | | | E:EPDM | DC24V |
| | | | | DC12V |
Model specification table NPT Thread Water Solenoid Valve Solenoid Valve 220v 1/4 Liquid Solenoid Valve
| Pipe size | Flow diameter mm | Cv value | Pressure difference (kgf/cm2) | Max fluid tem ℃ | Power | Order specification | Weight KG |
| Min pressure | Max working pressure | VA | W |
| Air | liquid | Light oil ≤20CST | AC220V | DC24V | Valve body |
| AC | DC | AC | DC | AC | DC | Wrought copper | SS | 0.43 |
| 1/8 | 1.0 | 0.04 | 0 | 100 | 75 | 100 | 75 | 100 | 75 | 110 | 24 | 18.5 | SLG1DF02V1A01 | SLG1DF02V3A01 | 0.43 |
| 1.2 | 0.05 | 0 | 90 | 70 | 90 | 70 | 90 | 70 | 110 | 24 | 18.5 | SLG1DF02V1AC1 | SLG1DF02V3AC1 | 0.43 |
| 1.5 | 0.08 | 0 | 75 | 50 | 75 | 50 | 75 | 50 | 110 | 24 | 18.5 | SLG1DF02V1AC2 | SLG1DF02V3AC2 | 0.43 |
| 2.0 | 0.14 | 0 | 35 | 30 | 35 | 30 | 35 | 30 | 110 | 24 | 18.5 | SLG1DF02V1A02 | SLG1DF02V3A02 | 0.43 |
| 2.5 | 0.23 | 0 | 20 | 15 | 20 | 15 | 20 | 15 | 110 | 24 | 18.5 | SLG1DF02V1AC3 | SLG1DF02V3AC1 | 0.43 |
Product Tags:
|
|

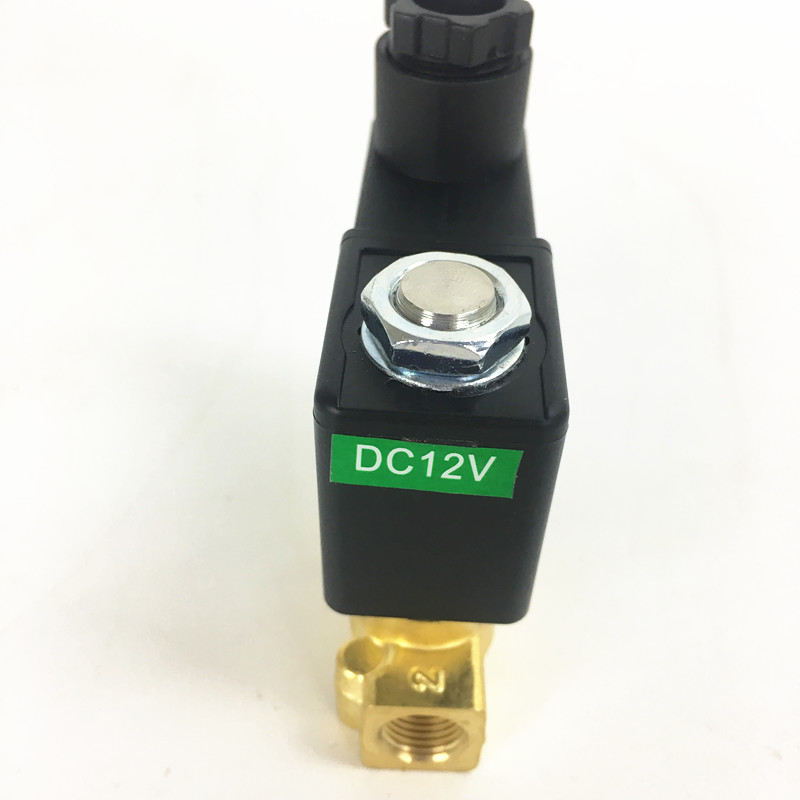

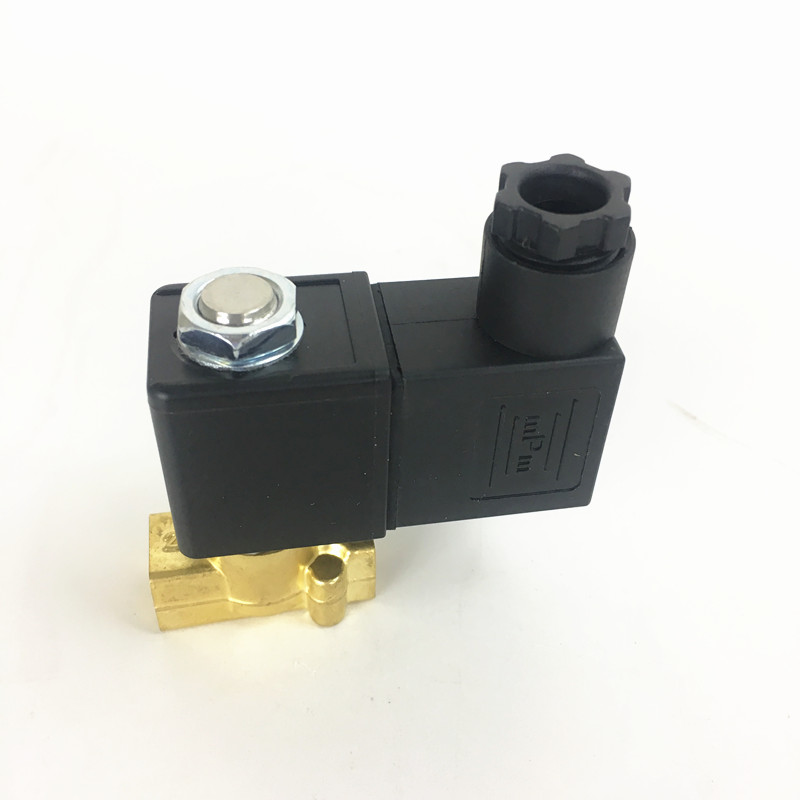

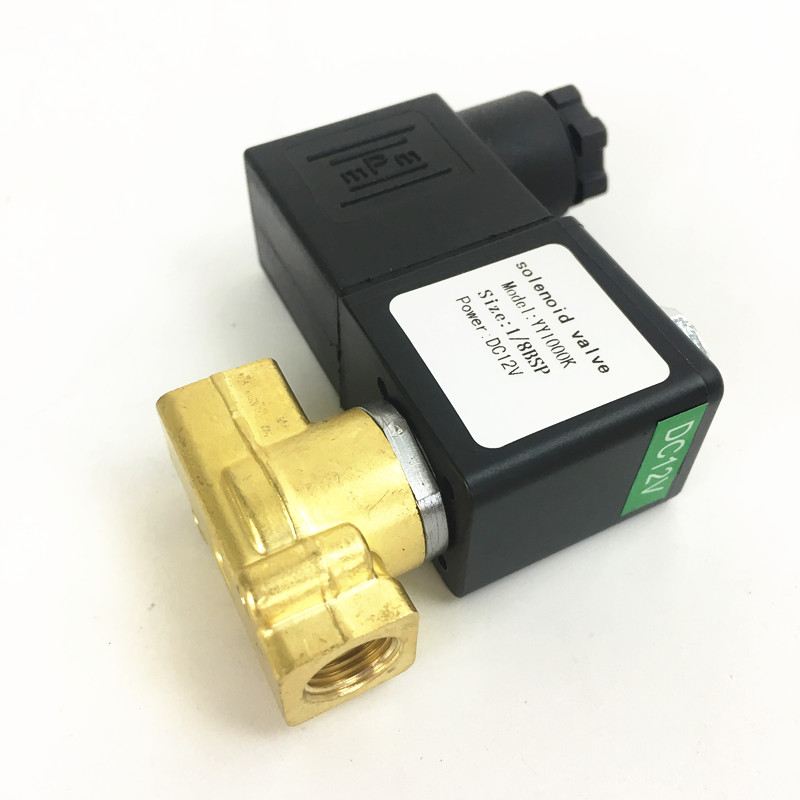

NPT Thread Water Solenoid Valve 220v 1/4 Liquid Solenoid Valve Images
|
